Machinery

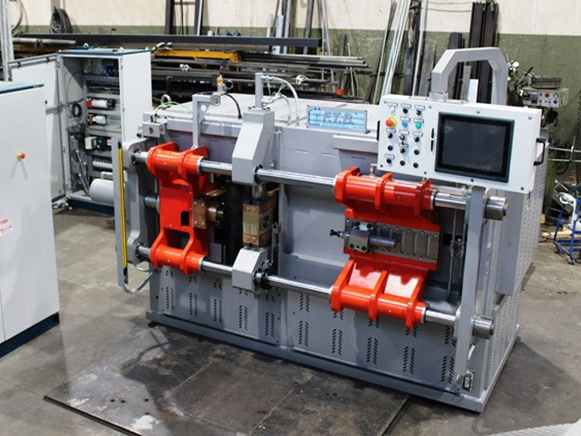

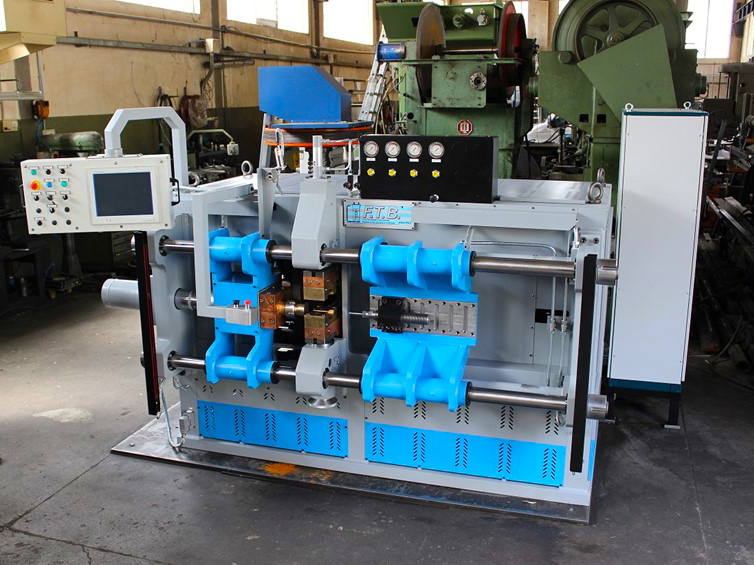

FTB ER 1301 MVR
Electric upsetter
Horizontal electric upsetting machine with fixed anvil. Hydraulic pusher (hammer) with proportional thrust control.
Fixed or mobile hydraulic anvil with proportional thrust and retraction control.
Three-phase power supply, with electronic regulation of the heating current.
- Nominal electric upsetting power (transformer): 130 Kw
- Power supply: 380-50-1 V - Hz - phase
- Min. ÷ max diameters that can be recalculated / max length of pieces: 16 ÷ 40/1000 mm
- No. of vices: 1
- Hammer working stroke (pusher): 500 mm
- Anvil working stroke (feedback): 200 mm
- Vice closing stroke: 100 mm
Data sheet
| Code | MMAM002 |
|---|---|
| Manufacturer | FTB |
| Condition | Used |
| Processed material | brass steel aluminium |
| Parts diameter | 16 - 40 mm |
