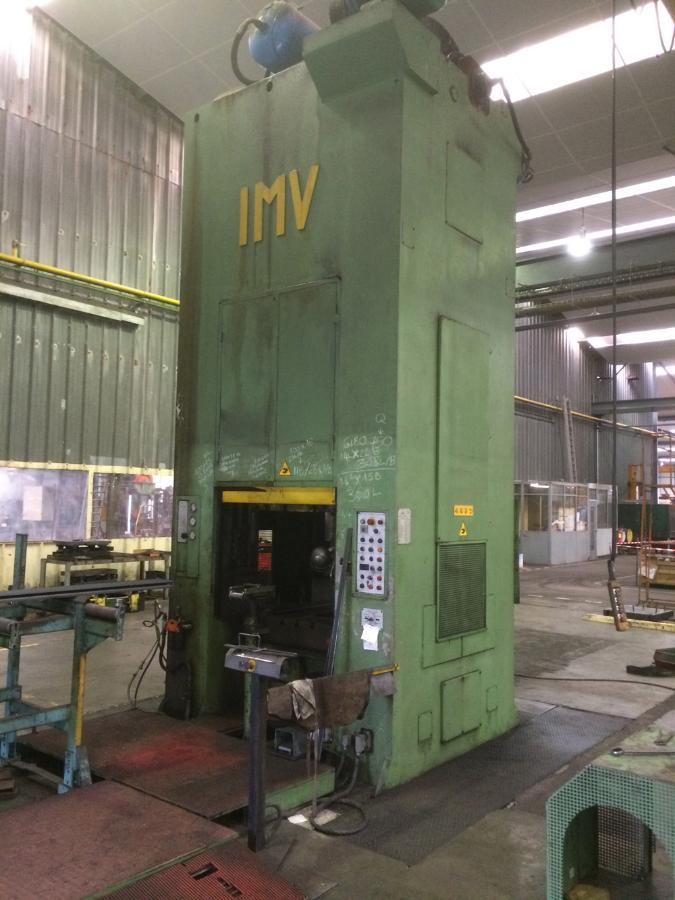

IMV DFL63 / Ton 630

Trimming press for forged parts trimming - deburring


Used Mechanical press for hot and cold trimming of steel forged parts

Ram       1100 x 1100 mm

Front daylight    1050 mm

Side daylight    700 mm

Ram adjustment          200 mm

Ram motor       5 kw

Main motor           45 kw

Weight       42 ton

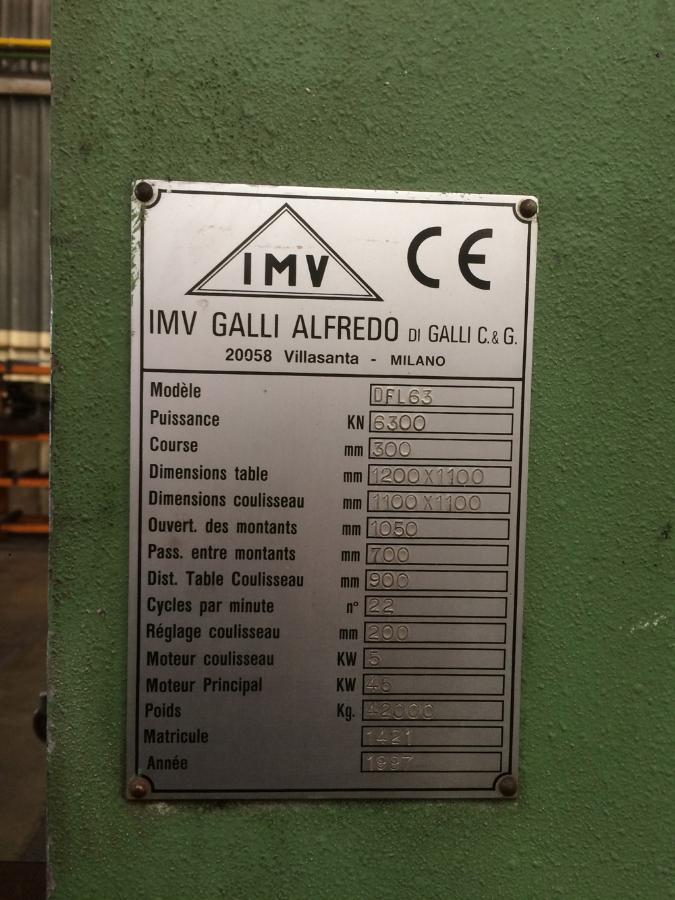

Data sheet

Code PMSB008
Manufacturer IMV
Condition Used
Processed material steel
Quantity of con-rods 1
Nominal power 630 ton
Strokes per minute 22
Table dimension 1.200 x 1.100 mm
Slide stroke 300 mm
Ram-table distance 900 mm
