Hasenclever FPPN Ø224 mm
Friction screw press for hot forging
.jpg)
.jpg)

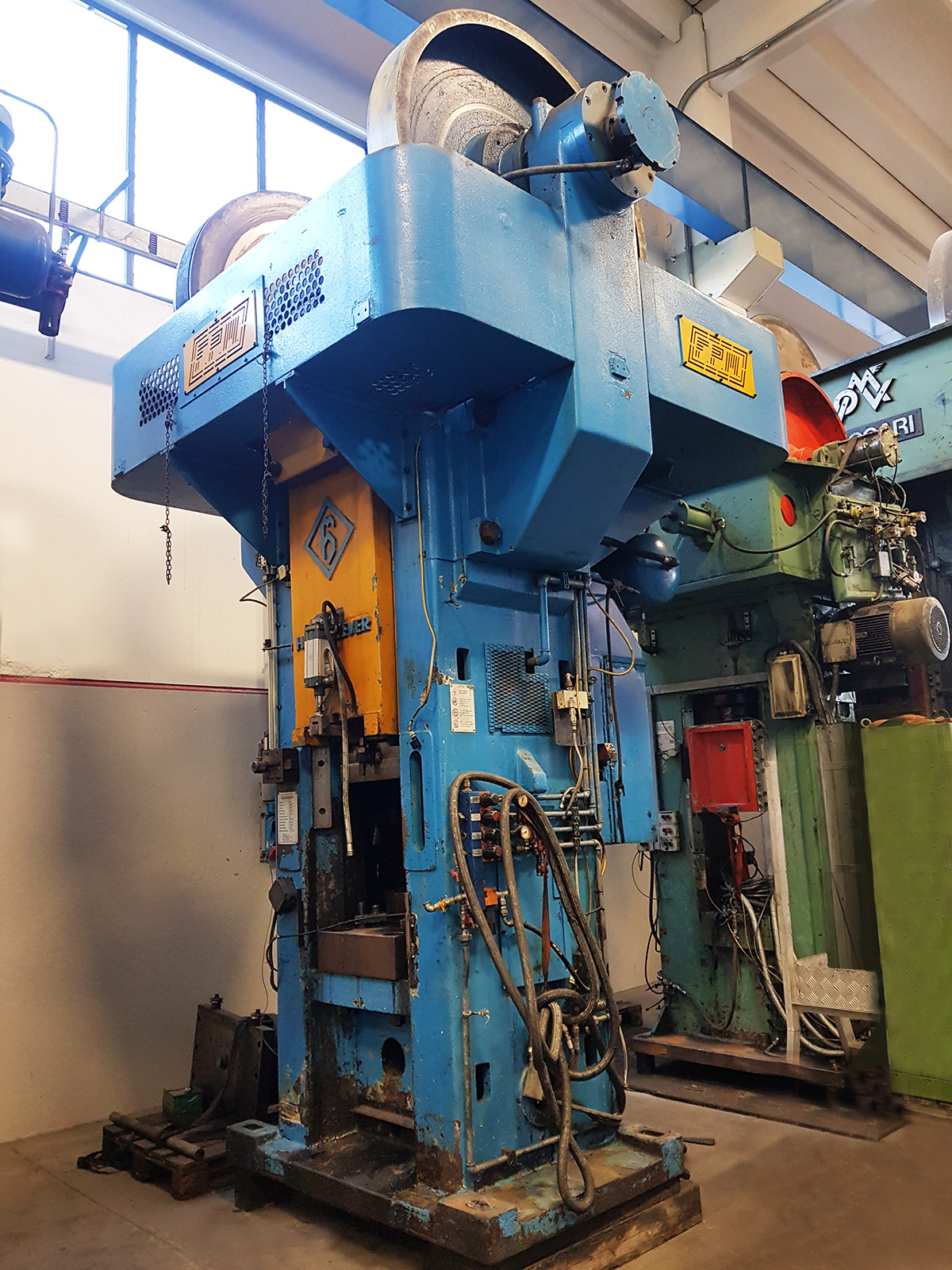

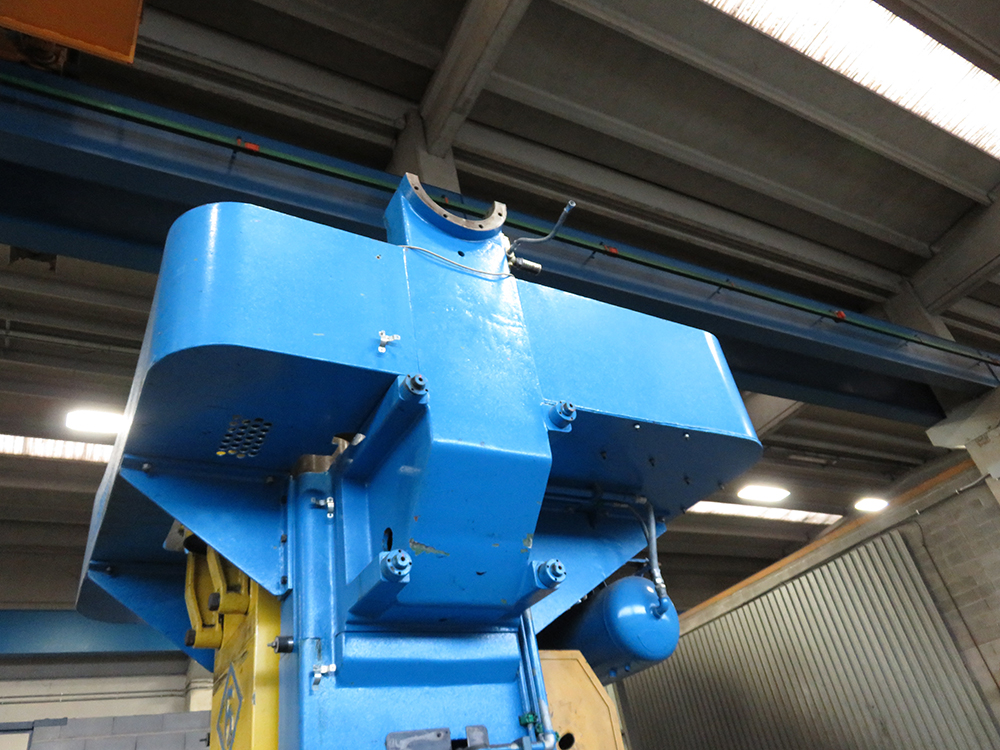

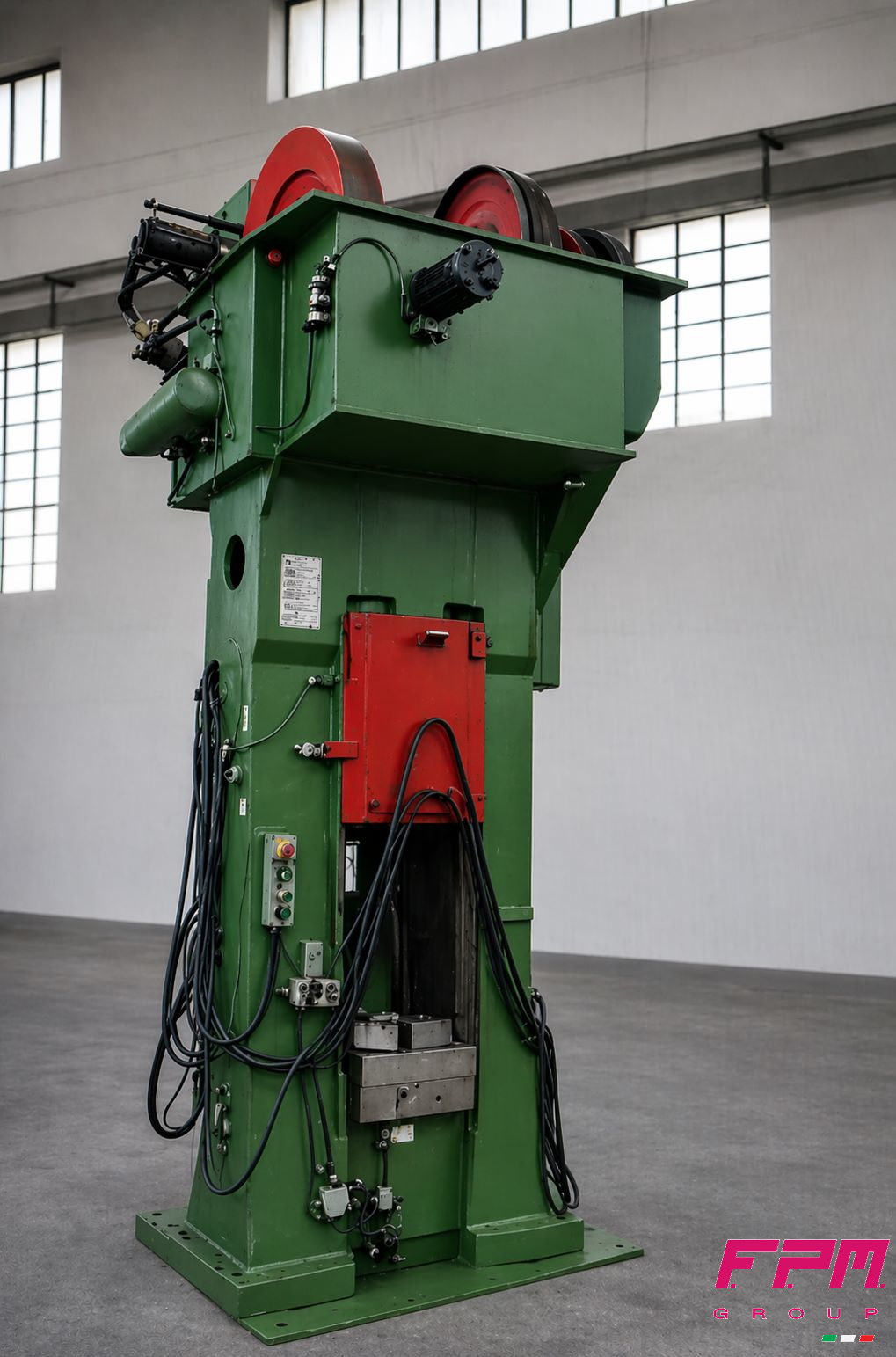

The Hasenclever friction screw press Model 224 is an industrial machine designed to deliver high performance in metal forming, blanking, and stamping processes. With a nominal force of 500 tons and a screw diameter of 224 mm, it is available either in its current condition or fully refurbished by FPM.
FPM CODE: BIL21001
Data sheet
| Code | ZZBI062 |
|---|---|
| Manufacturer | HANSEN |
| Condition | Used |
| Processed material | brass steel aluminium |
| Nominal power | 500 ton |
| Strokes per minute | 38 |
| Screw diameter | 224 mm |
| Table dimension | 510 x 800 mm |
| Maximal power | 1.000 ton |
| Motor power | 36 Kw |
