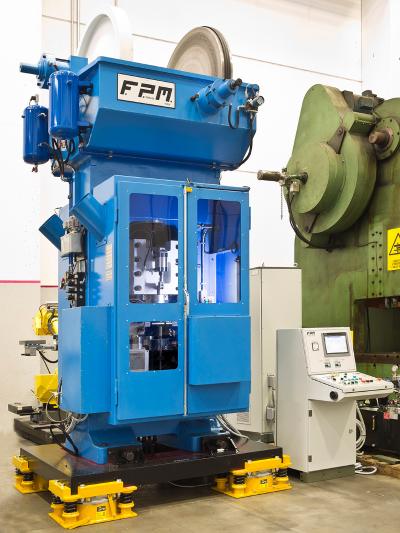

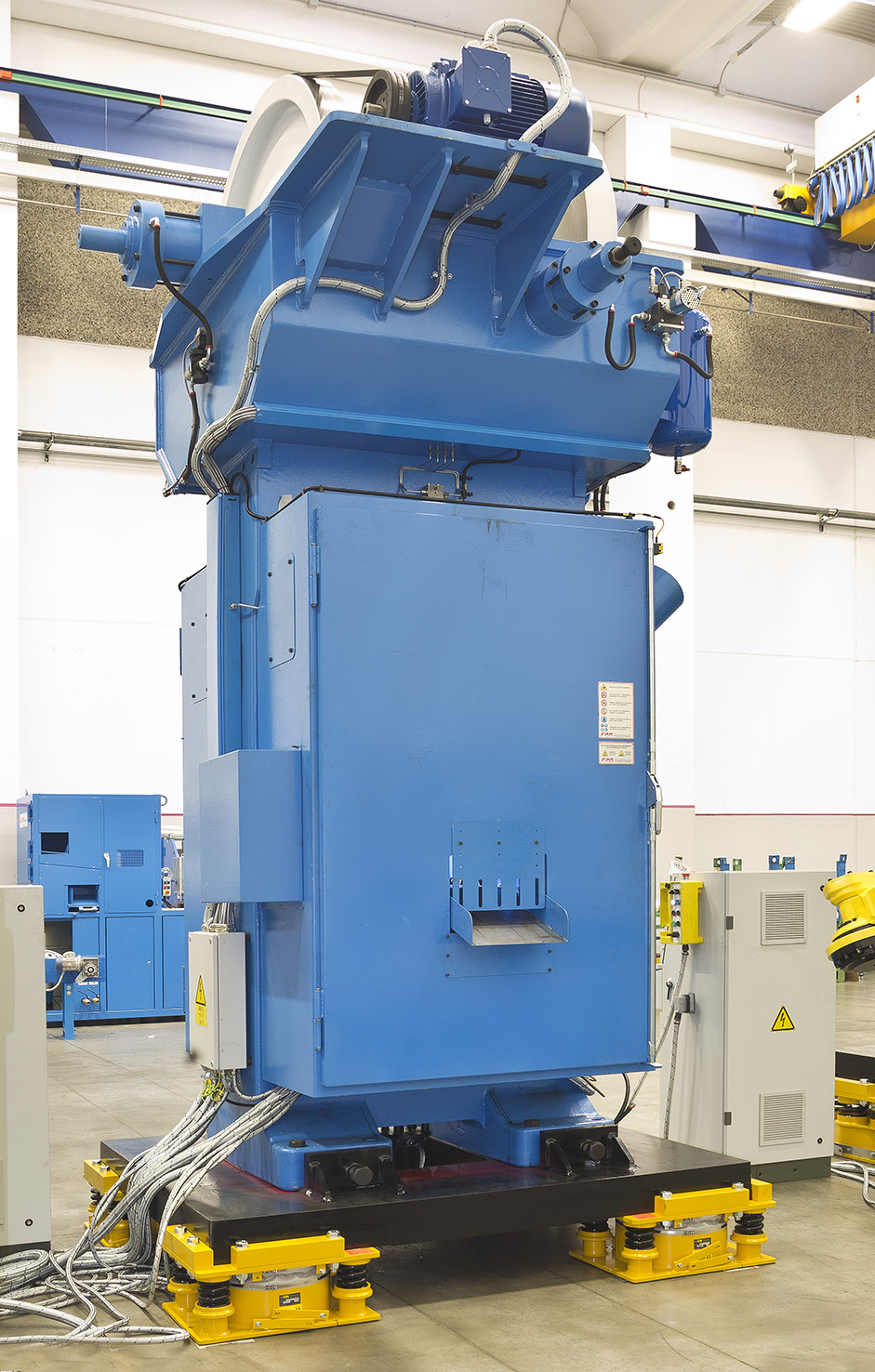

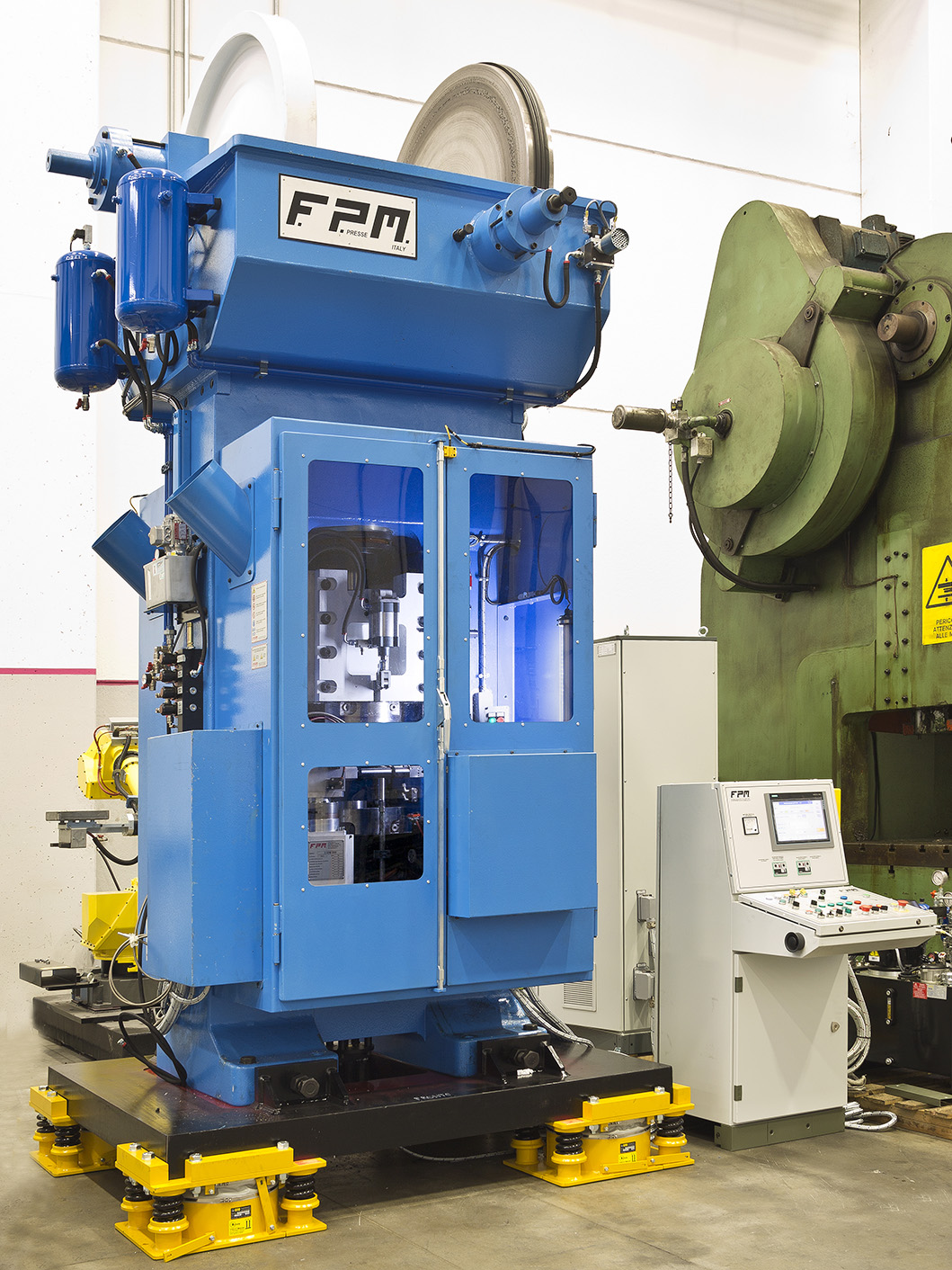

FPM ES Ø180 mm

Friction screw press for hot forging


The new FPM ES 180 friction screw press has been designed according to the basic principles of mechanical construction, adding to that the experience FPM has gained in many years through disassembling, overhauling and then analysing all the screw presses manufactured by the most important Italian and foreign companies.

Thanks to our experience we have been able to realise a new range of friction screw presses based on simple, basic concepts:

Special casting material
Hydraulic pre-load of frame with two steel tie rods
Main screw in special forged steel.
Bushing in special bronze alloy.
Disk shaft in forged steel.

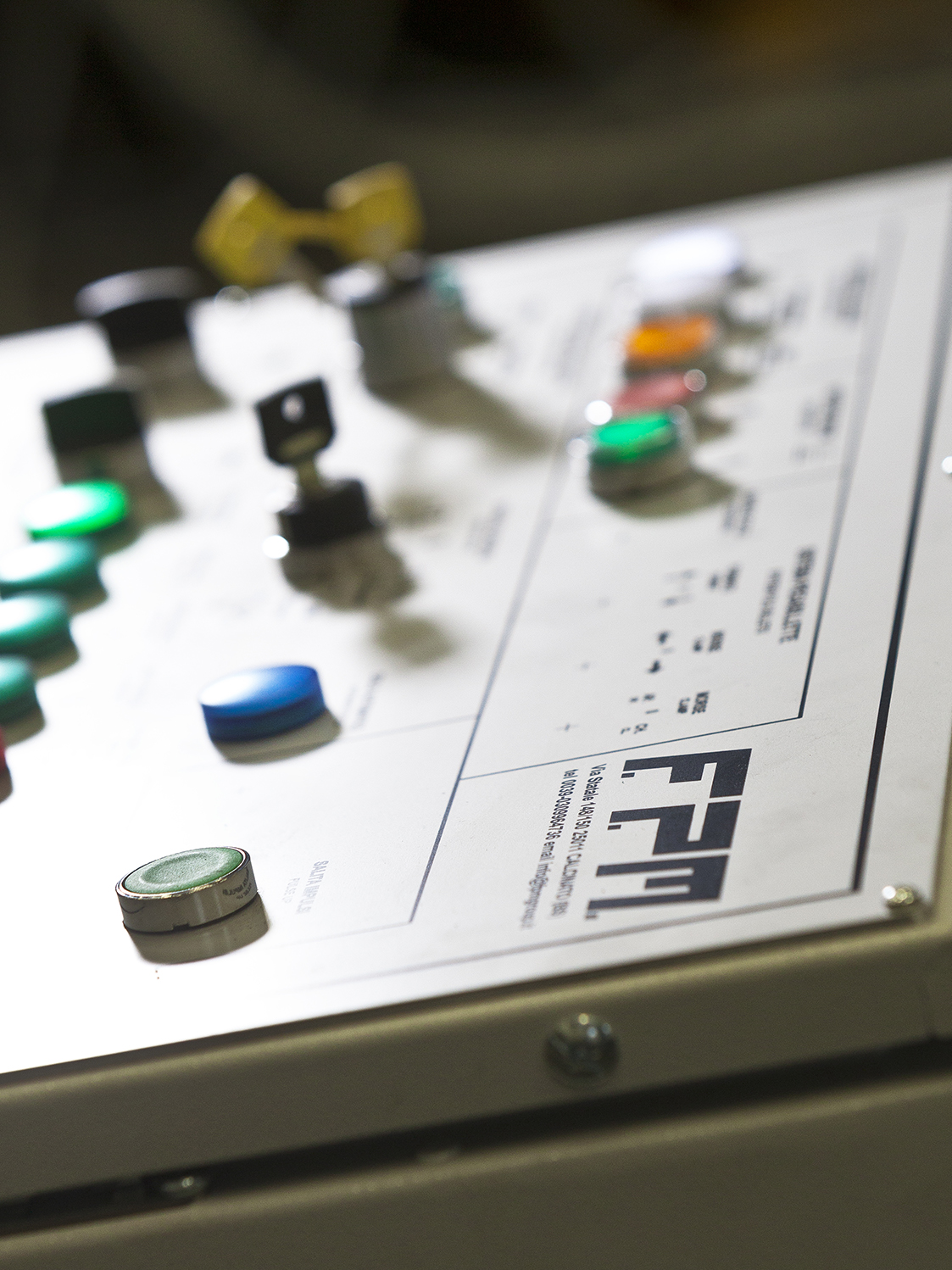

Our press is equipped with an electronic control of press power and ram upstroke- easily adjustable strokes – with explicit, reliable diagnostics in addition to the above characteristics.

Data sheet

Code ZZBI011
Manufacturer FPM GROUP
Condition New
Processed material brass steel aluminium
Nominal power 340 ton
Strokes per minute 48
Screw diameter 180 mm
Table dimension 440 x 550 mm
Slide stroke 350 mm
Ram-table distance 350 mm
Maximal power 540 ton
