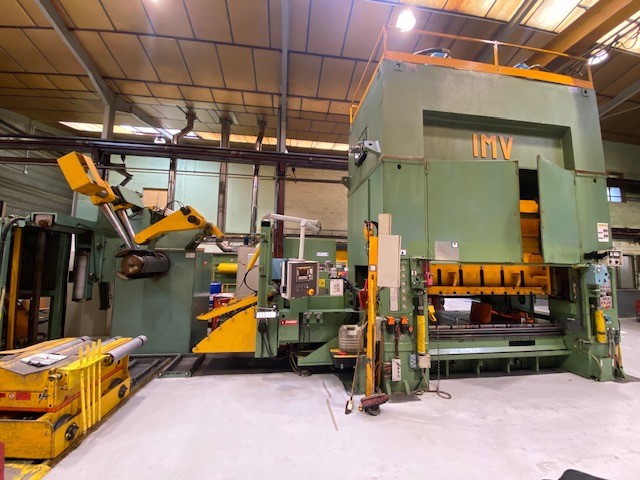

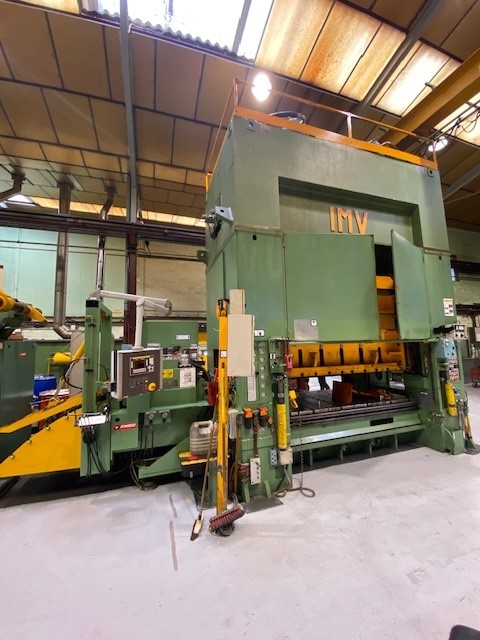

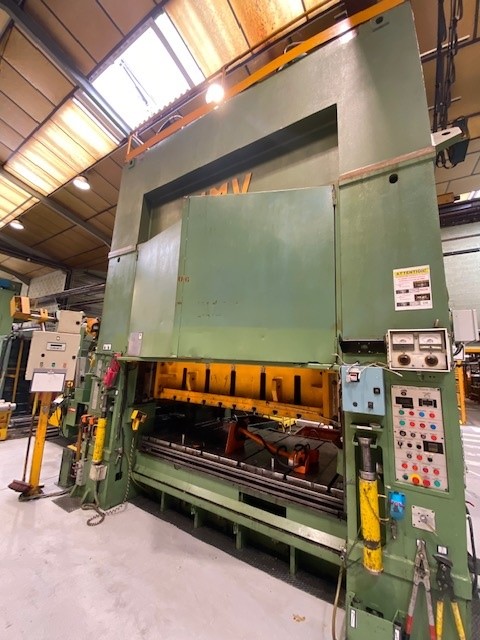

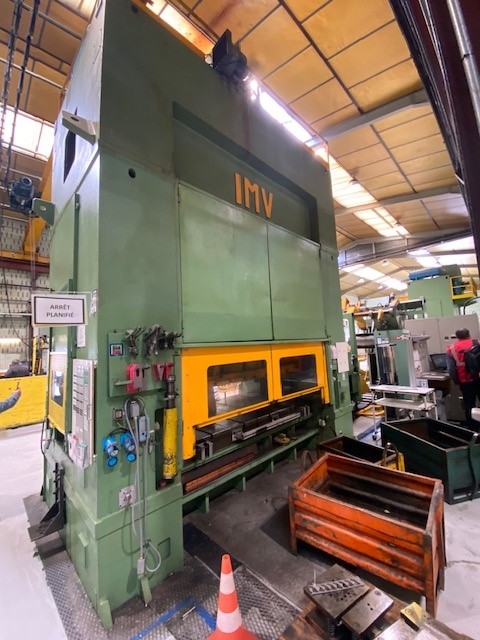

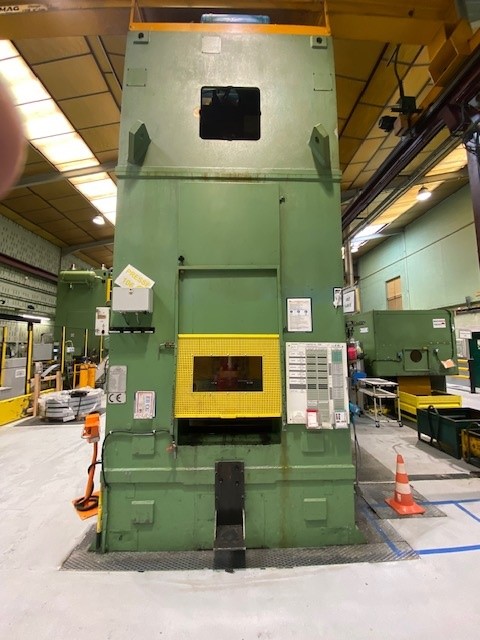

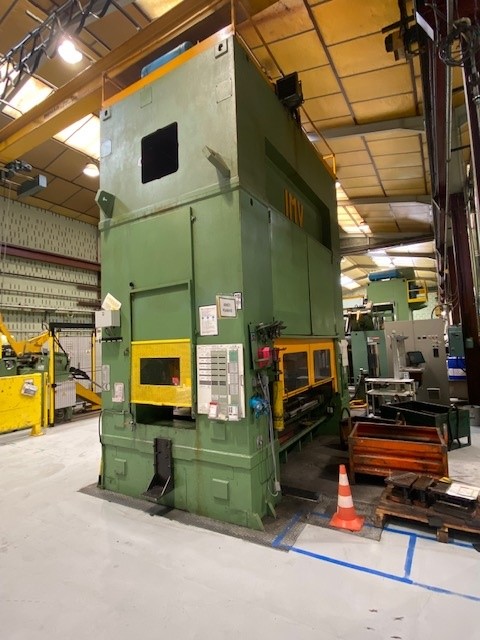

IMV DM 63-2.5V / Ton 630

Mechanical straight side press for cold stamping

IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping
IMV DM 63-2.5V / Ton 630 Mechanical straight side press for cold stamping

Description

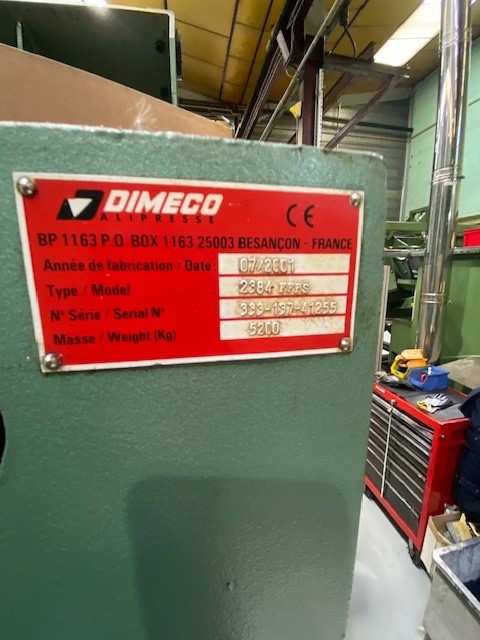

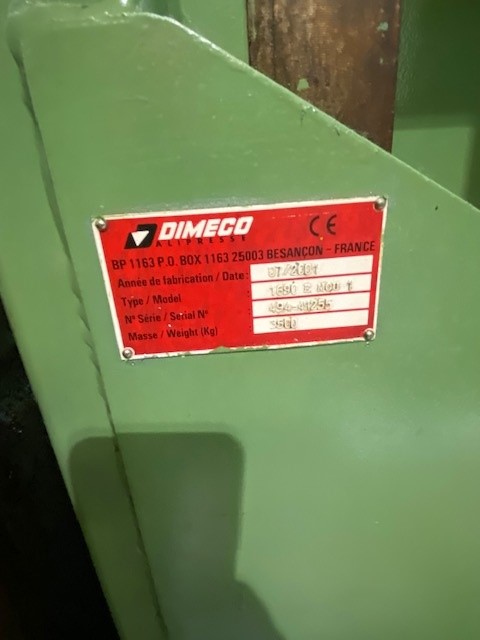

Complete with DIMECO coil feed line consisting of:

  • Sheet metal containment system
  • Reel
  • Crib

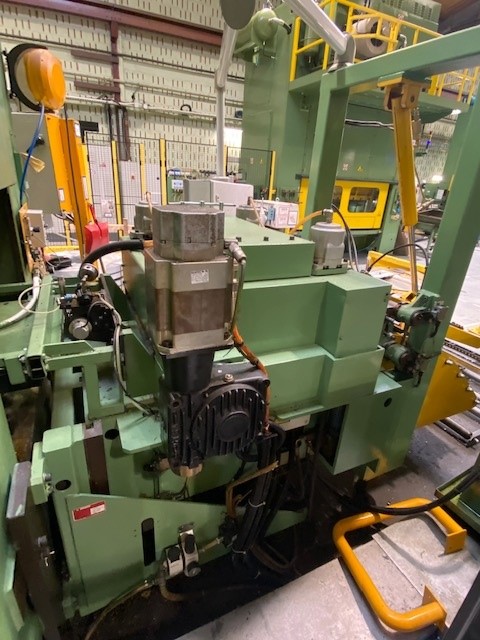

  • Feeding straightener with motorized lift
  • Pressing arm



Main features:

  • Max sheet width: 800 mm
  • Max sheet diameter: 1500 mm
  • Max sheet weight: 6 tons
  • Sheet thickness: from 1 to 4.5 mm

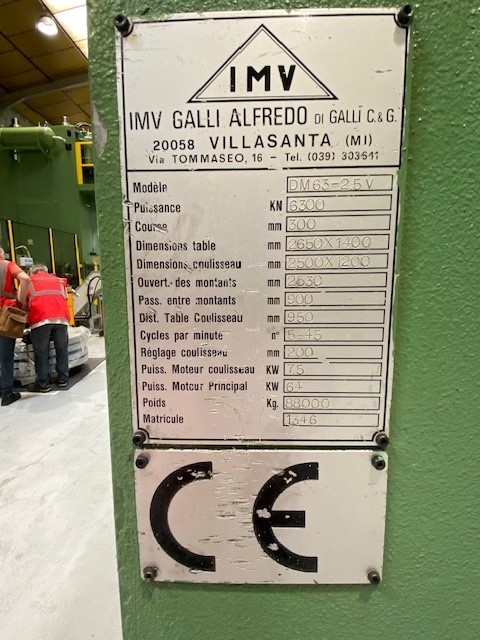

Data sheet

Code PMDM023
Manufacturer IMV
Condition Used
Processed material metal sheet
Quantity of con-rods 2
Nominal power 630 ton
Strokes per minute 5-45
Slide stroke 200 mm

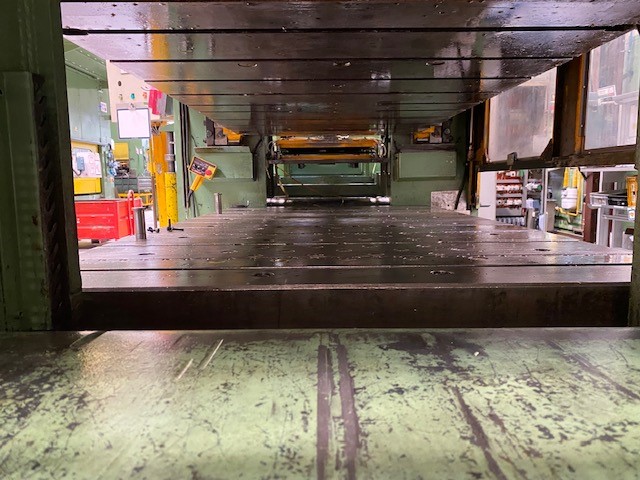

Ram-table distance 950 mm
Motor power 64 Kw
